Baffle Ceiling Specialist in KL & Selangor
Aluminium baffle ceilings for cafés, offices, lobbies and retail — powder-coated, wood-grain or acoustic-backed, designed, supplied and installed by our own CIDB-certified crew across the Klang Valley.
Last updated: 11 June 2026
Book a free site visit →Hypro Renovation designs and installs aluminium baffle ceilings for cafés, offices, lobbies and retail across KL and Selangor. Powder-coated baffle ceiling systems cost around RM25 to RM35 per square foot installed, wood-grain and acoustic-backed systems up to RM45, and most feature areas finish in 2 to 4 days. CIDB-certified installers, free site visit, fixed itemised quote. WhatsApp 017-786 8793 to book.
Baffle Ceiling Designs We Install
We install four main baffle styles: straight-run aluminium baffles, wood-grain finishes, acoustic-backed systems and curved or custom layouts, all with optional linear lighting. You can see completed installations in our project portfolio.

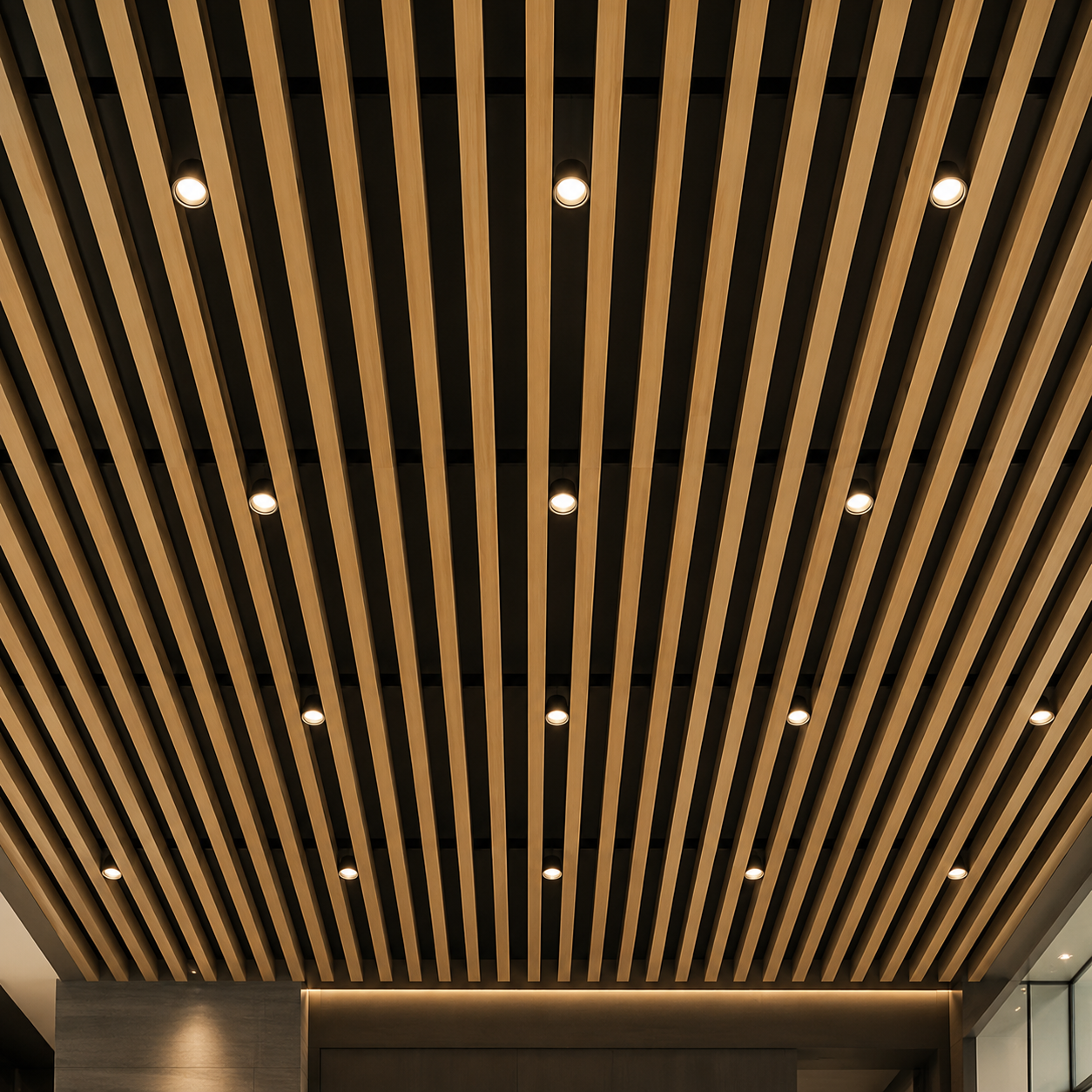

Straight-run aluminium baffles
Evenly spaced vertical slats in powder-coated white, black or custom colours. The clean linear look that defines modern cafés, offices and showrooms.

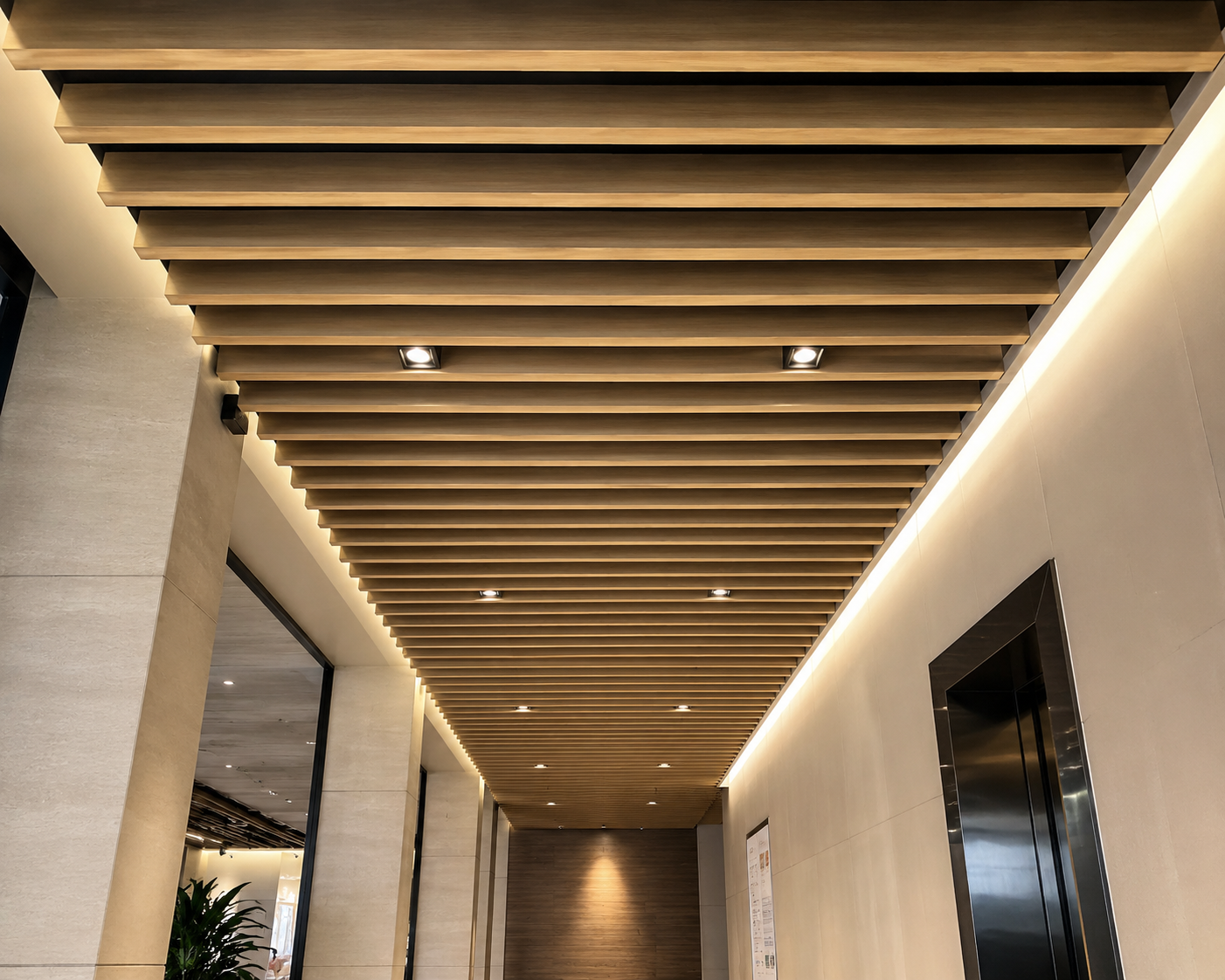

Wood-grain finish baffles
Aluminium slats with a timber-look wrap. All the warmth of wood with none of the termites, warping or repainting.

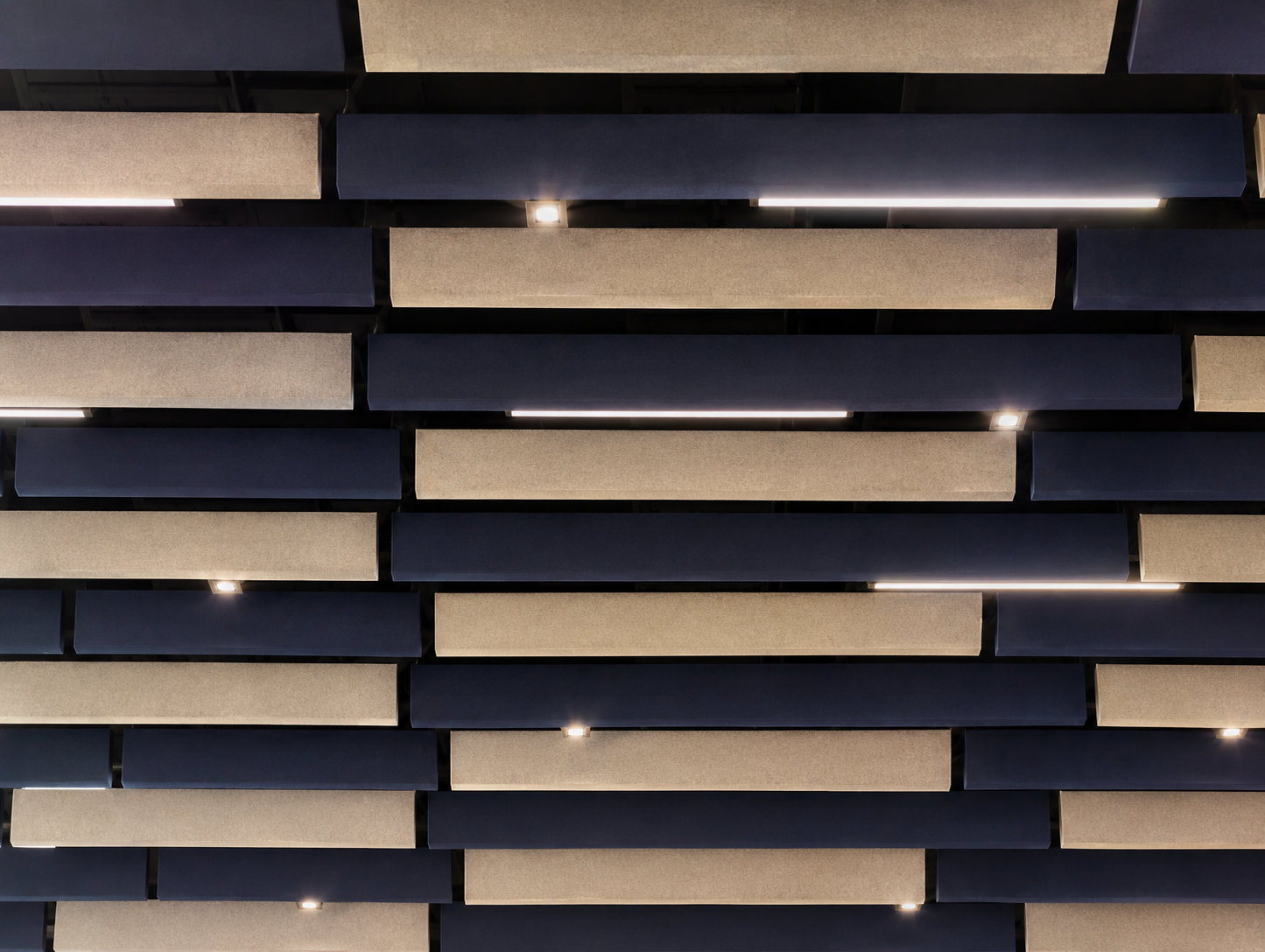

Acoustic-backed baffles
Black insulation and mesh laid above the open slats to soak up echo in open offices, F&B floors and event spaces.

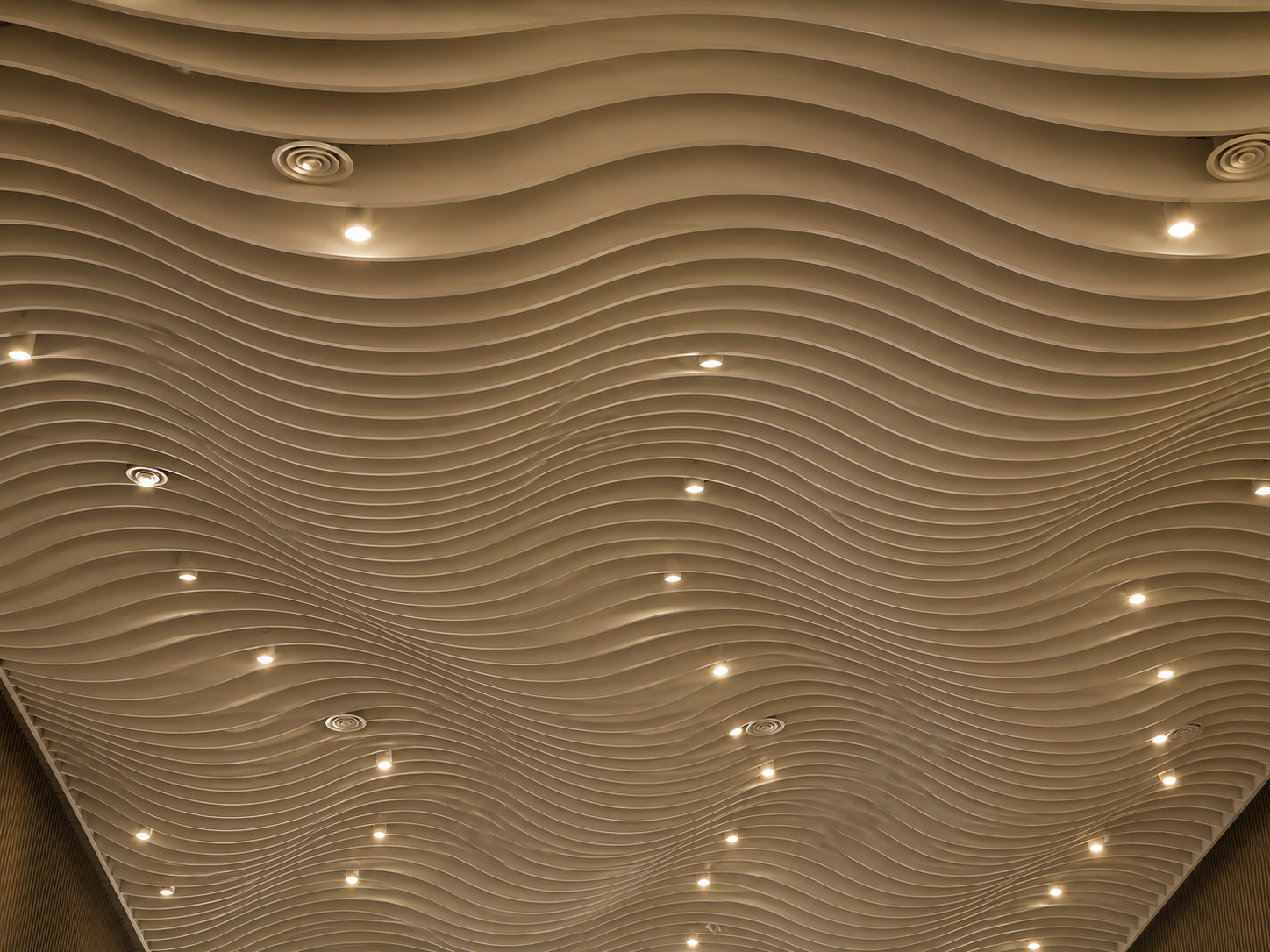

Curved & custom layouts
Wave profiles, mixed drop heights and angled runs for lobbies and feature areas that need to be remembered.
The gaps between slats are the whole point. Air moves freely, sprinklers and aircon stay functional behind the slat line, and wiring above stays reachable without hacking anything open. Slat depth, spacing and colour set the character, which is why we mock up the layout before ordering on every Hypro ceiling and partition project.
Want to see the slat work up close before you decide? — Browse completed ceiling and partition projects in cafés, offices and shops across KL and Selangor. See our projects →
Why Choose Hypro
Hypro is a CIDB-certified contractor with 20+ years in ceiling and partition works. Our own installers handle every baffle job, and the same team installs aluminium strip ceilings where a flat panel finish fits better.
A baffle ceiling adds what flat ceilings can't: open slats that let air and sprinklers work freely while carrying the design of the whole space — measured and installed by one Hypro team.
Baffle Ceiling Price in Malaysia
In 2026, a powder-coated aluminium baffle ceiling costs around RM25 to RM35 per square foot installed in KL and Selangor. Wood-grain finishes run RM30 to RM40, and acoustic-backed systems RM32 to RM45. Get an exact figure with a free site measurement.
Slat spacing moves the price more than colour or brand. Closer spacing means more aluminium per square foot of ceiling, so a dense feature area costs more than an open, airy one. As a market sanity check, Malaysian installers such as Allweld Metal Engineering quote RM25 to RM45 per square foot for baffle systems, which matches the installed ranges below.
| System | Installed price (per sq ft) | Relative cost |
|---|---|---|
| Powder-coated aluminium baffles (white / black) | RM25 – RM35 | RM25–35 |
| Wood-grain finish aluminium baffles | RM30 – RM40 | RM30–40 |
| Acoustic-backed baffle system | RM32 – RM45 | RM32–45 |
| Curved / custom feature layouts | RM38 – RM48 | RM38–48 |
Source: Hypro Renovation project quotations, KL & Selangor, 2024–2026. Market cross-check: Allweld Metal Engineering.
Key takeaway — Budget RM25 to RM35 per square foot for a standard powder-coated system. Slat spacing is the biggest lever, so deciding how dense the slat line should be matters more than picking the colour.
What Affects Your Quote
Baffles and the carrier frame make up about half a typical quote, with labour next. Slat spacing, slab height, lighting integration and mall night-work rules add the rest, which is why a free site visit beats any phone estimate.
| Cost component | Typical share of quote | What moves it |
|---|---|---|
| Baffles + carrier system | ~50% | Slat depth, finish, spacing density |
| Labour & setting out | ~25% | Slab height, access, day vs night works |
| Lighting integration | ~15% | Linear LED profiles, downlights, track lights |
| Trims, edges & wastage | ~10% | Room shape, perimeter details, odd corners |
Source: Hypro Renovation project quotations, KL & Selangor, 2024–2026.
Lighting deserves early attention. Linear LED profiles running between slats look superb, but they must be planned with the slat spacing, not squeezed in later. The same goes for painting the slab black above an open slat line. It is cheap during installation and disruptive afterwards, so both appear as clear line items in our itemised quote.
Want a fixed number instead of a range?
We measure, confirm slat spacing and finish, and hand you a line-by-line quotation. Free, no obligation. Baffles, carrier frame, lighting and labour priced separately so you can compare fairly.
Installation Process & Timeline
A café or shop feature area takes 2 to 4 days. A full office floor or lobby runs 5 to 12 days depending on size and night-work rules. Every Hypro installation follows the same five steps, from site visit to handover.
| Project type | Typical duration | Notes |
|---|---|---|
| Café / F&B feature area | 2–4 days | Often phased to keep the outlet trading |
| Office reception / meeting rooms | 3–5 days | Lighting integration adds a day |
| Retail outlet | 4–7 days | Often night works to fit mall rules |
| Full office floor / lobby | 5–12 days | Phased by zone so work can continue |
Source: Hypro Renovation project records, KL & Selangor, 2024–2026.
The five steps in every job:
Free site visit
We measure, check slab height and access, and confirm what runs above the slat line.
Fixed itemised quote
Baffles, carrier frame, lighting, labour and any removal works, line by line.
Design & materials confirmed
Slat profile, finish, spacing and lighting positions locked before ordering.
Installation
Carrier frame set level, slab painted if specified, slats clipped in by our own CIDB-certified installers.
Inspection & handover
Slat alignment and lighting checked against the quote before we call it done.
Key takeaway — Most feature areas finish within four days because there is no wet work. Lock spacing and lighting positions before ordering. Changing them after the carrier frame is up is what stretches schedules.
A slat line one degree off stays visible forever — which is why our own certified crew installs every baffle ceiling job, never a sub.
Baffle Ceiling vs Strip Ceiling vs Plaster Ceiling
Choose a baffle ceiling for open slats with depth, airflow and acoustics, an aluminium strip ceiling for flat sealed panels in wet or outdoor areas, and plaster for smooth, seamless indoor surfaces.
Acoustic guides such as dbsorb's baffle vs grid comparison rate baffles ahead of flat ceiling systems for acoustic control and design flexibility, because suspended slats expose more sound-absorbing surface to the room. Allweld Metal Engineering makes the same call for Malaysian projects: strips for clean budget-friendly coverage, baffles for airflow, sound control and visual impact.
| Factor | Aluminium baffle | Aluminium strip | Plaster / gypsum |
|---|---|---|---|
| Installed price (per sq ft) | RM25 – RM45 | RM15 – RM30 | RM5 – RM18 |
| Look | Open slats with depth | Clean parallel panels | Seamless, any shape |
| Noise control | Best with acoustic backing | Moderate — flat reflective panels | Fair — hard surface |
| Airflow & services access | Excellent — open gaps | Limited — panels removable | Access panels needed |
| Best for | Cafés, lobbies, offices, retail | Kitchens, baths, porches, walkways | Living halls, bedrooms, showroom fronts |
Source: aggregated Malaysian market guidance incl. Allweld Metal Engineering and dbsorb; Hypro installation experience, 2024–2026.
Many fit-outs mix systems. The customer-facing front gets baffles for drama, the back corridors get plaster or strips, and the wet kitchen gets sealed panels. One Hypro team installs all of them, which keeps ceiling levels aligned and the schedule tight.
Key takeaway — Baffles cost more per square foot than strips or plaster, but they carry the design of the whole space. Spend on the feature zone where customers look up, and use cheaper systems where they don't.
Service Areas: Kuala Lumpur, Selangor & the Klang Valley
We install baffle ceilings Kuala Lumpur-wide and across Selangor — Petaling Jaya, Shah Alam, Subang Jaya, Klang, Puchong, Kajang, Rawang and Sungai Buloh. From our base in Bandar Sri Damansara, most of the Klang Valley is within 45 minutes for a free site visit.
For selected commercial projects such as hotel works, chain outlets and showrooms, we travel beyond the Klang Valley too. Coverage outside these areas is quoted case by case. WhatsApp us your location and floor area to check.
A baffle ceiling earns its price in the spaces where first impressions pay rent: café floors, office receptions, retail entrances and lobbies. The open slats add depth that flat ceilings cannot match, keep air and sprinklers working freely, and take acoustic backing where noise matters. Costs are predictable once the slat profile and spacing are set, and most feature areas are done within days. What separates a sharp slat line from a wavy one is the installer, so a specialist crew matters more here than in almost any other ceiling trade.
Best 7 Baffle Ceiling Designs
Still gathering ideas? The short video below walks through seven slat-and-lighting designs to spark your own layout before the site visit.
Source video: IQUBX on YouTube
What KL & Selangor Clients Say About Hypro
Verified Google reviews from offices, shops and homes we've fitted out across the Klang Valley.
Ready for a ceiling people look up at?
Book a free site visit. We'll measure your space, mock up the slat spacing and lighting that suit it, and hand you a fixed itemised quote on the spot.
Frequently Asked Questions
A powder-coated aluminium baffle ceiling costs around RM25 to RM35 per square foot installed in KL and Selangor. Wood-grain finishes run RM30 to RM40, acoustic-backed systems RM32 to RM45, and curved or custom feature layouts RM38 to RM48. Slat spacing is the biggest price driver, so denser slat lines cost more.
A café or shop feature area takes 2 to 4 days. Office receptions and meeting rooms take 3 to 5 days, retail outlets 4 to 7 days, and full office floors or lobbies 5 to 12 days depending on size and night-work rules. There is no wet work, so spaces reopen quickly.
A baffle ceiling is a row of vertical slats, usually aluminium, suspended in parallel from a carrier frame with open gaps between them. The gaps let air, sprinklers and lighting work freely while the slats add depth and rhythm. It is a popular feature ceiling for cafés, offices, lobbies and retail in Malaysia.
Open slats alone soften echo slightly, but the real gain comes from acoustic backing: insulation and black mesh laid above the slat line. Because suspended slats expose more absorbing surface to the room than a flat ceiling, an acoustic-backed baffle system noticeably cuts echo in open offices, F&B floors and event spaces.
Yes. Site visits and itemised quotations are free throughout KL and Selangor. WhatsApp 017-786 8793 with your location and floor area, and we'll arrange a time within the week.
